CMP Rolling Machine

CMP Rolling Machine

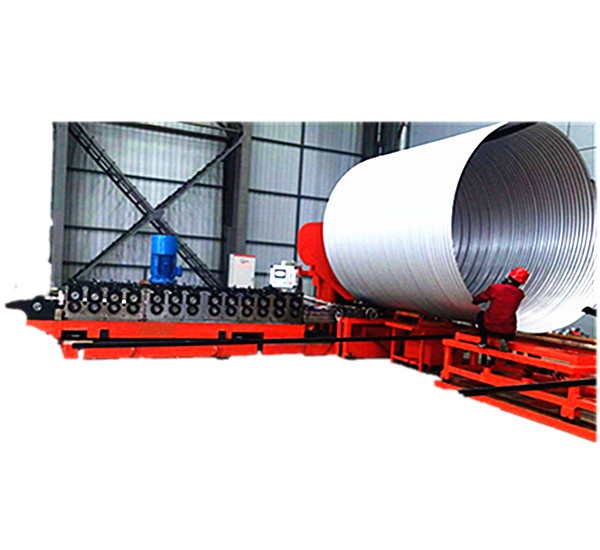

CMP Rolling Machine is also named CORRUGATED METAL PIPE Mill or CMP Mill, is a kind of  machine
fabricate CMP pile or CORRUGATED METAL PIPE.

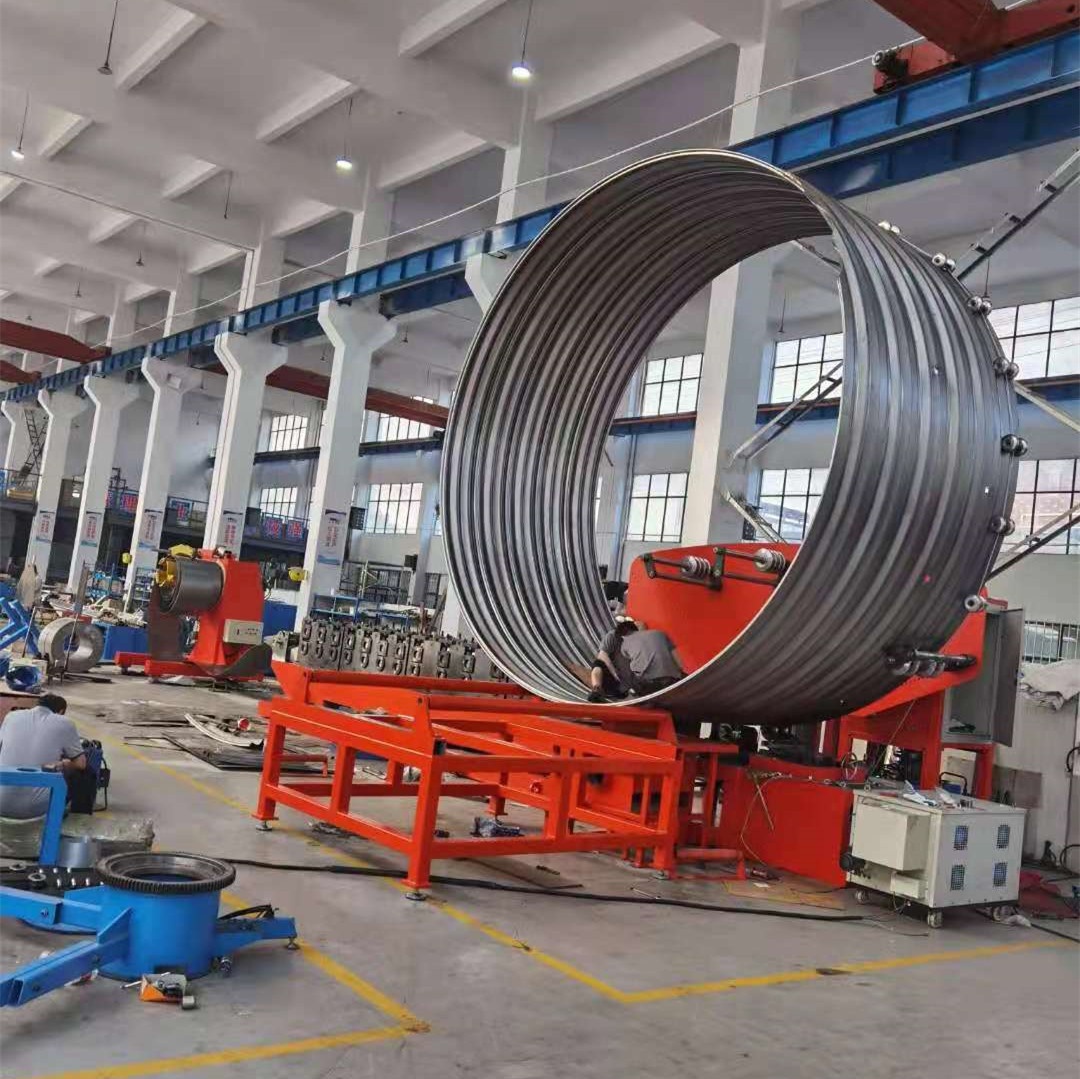

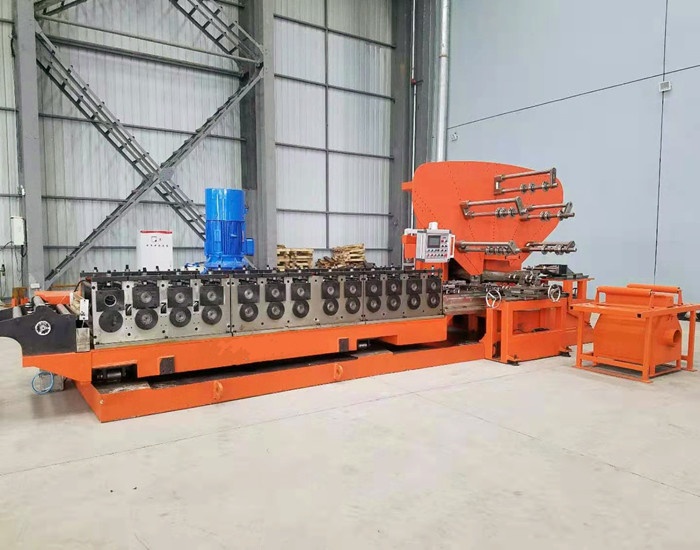

The corrugated spiral welded pipe unit is powered by a motor-driven helical gear reducer,which is driven to the gear box through the sprocket.
The gear box has eight power connection positions, which are connected to the lower roll shafts by chain engagement respectively, the rest of
the units are connected by chains.Finally, the forming roller is driven to roll the strip steel to form the corrugated, which enters into the round
of the stop wheel abrasive tool, then the bite wheel is bitten and pressed, and finally formed corrugated spiral pipe.


Our CMP machine fatures:

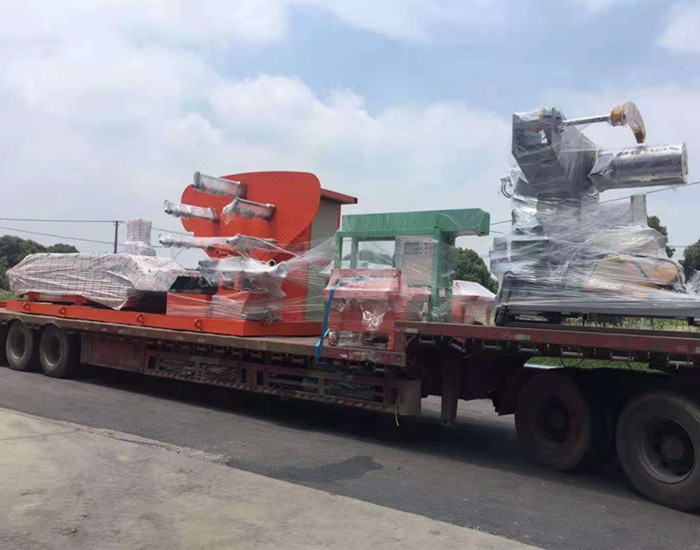

1. Portable, can be transport to work site fabricate the CMP pile, it can largelt reduce the transport cost of CMP pipe.
2.Module design, easy instalation.
3. Automatic computer control, esay operation

Corrugation size:

Corrugation size

Corrugation Pitch (P)

Corrugation HeightH

Arc radius (R)

68-13

68mm±1mm

13mm±1mm

14.5

125-25

125mm±1mm

25mm±1mm

40

75-25

75mm±1mm

25mm±1mm

17.5
